一.前言

本篇笔记的主线包含三点，Lifecycle的作用、实现原理、以及源码分析；

二.简介

官方文档
生命周期感知型组件可执行操作来响应另一个组件（如 Activity 和 Fragment）的生命周期状态的变化。这些组件有助于您写出更有条理且往往更精简的代码，这样的代码更易于维护。

三.实现原理

结论先行：Lifecycle是基于反射和观察者模式实现的。
- 使用过程中，实现不同的观察者实现，内部的具体执行流程不同，若使用DefaultLifecycleObserver，则内部不会执行反射相关的代码。若观察者使用LifecycleObserver实现，则会执行反射的代码；
- 同时API29和29以下，会有一些小小的区别，另外，Lifecycle的依赖有多种方式，参考官网文档最好；
关于结论有个细节需要进行区分,使用jdk1.7的情况是需要使用到反射，但是jdk1.8是不需要使用到反射的。
当然，这里我需要贴上我分析的Lifecycle所对应的库版本，其它版本暂时还没有去关注，所以该细节也需要注意。

dependencies {
        def lifecycle_version = "2.2.0"
        // Lifecycles only (without ViewModel or LiveData)
        implementation "androidx.lifecycle:lifecycle-runtime:$lifecycle_version"
}

sdk的版本是30（在分析源码的时候，有个位置跟sdk版本有些关联）；
大家先记住结论，源码分析完成之后就可以验证该结论。

四.使用

主要是三个方面，要实现被观察者、观察者、建立被观察者和观察者之间的联系；
被观察者：直接或间接实现LifecycleOwner接口；
观察者：直接或间接实现LifecycleObserver接口；
被观察者和观察者建立关联：被观察者对象.addObserver(观察者对象)；
上代码

import android.util.Log;
import androidx.lifecycle.Lifecycle;
import androidx.lifecycle.LifecycleObserver;
import androidx.lifecycle.OnLifecycleEvent;

/**
 * 创建观察者
 */
public class TestObserver implements LifecycleObserver {

    private static final String TAG = "Lifecycle";

    @OnLifecycleEvent(Lifecycle.Event.ON_CREATE)
    public void onCreate() {
        Log.e(TAG, "onCreate");
    }

    @OnLifecycleEvent(Lifecycle.Event.ON_START)
    public void onStart() {
        Log.e(TAG, "onStart");
    }

    @OnLifecycleEvent(Lifecycle.Event.ON_RESUME)
    public void onResume() {
        Log.e(TAG, "onResume");
    }

    @OnLifecycleEvent(Lifecycle.Event.ON_PAUSE)
    public void onPause() {
        Log.e(TAG, "onPause");
    }

    @OnLifecycleEvent(Lifecycle.Event.ON_STOP)
    public void onStop() {
        Log.e(TAG, "onStop");
    }

    @OnLifecycleEvent(Lifecycle.Event.ON_DESTROY)
    public void onDestory() {
        Log.e(TAG, "onDestory");
    }

    @OnLifecycleEvent(Lifecycle.Event.ON_ANY)
    public void onAny() {
        Log.e(TAG, "onAny");
    }
}

//被观察者和观察者建立关联
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;

//MainActivity是被观察者
public class MainActivity extends AppCompatActivity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        //调用api
        getLifecycle().addObserver(new TestObserver());
    }
}

4.1.注意事项

我们拿一个具体的被观察者和观察者举例。
假设被观察者是Activity，只要该Activity直接或间接实现了LifecycleOwner接口（是否默认实现跟sdk版本或者是否是Androidx都管关系），那么被观察者就准备完毕。
观察者的创建，我们需要创建一个新类，直接或间接实现LifecycleObserver接口。这里需要区分使用的Jdk是1.7还是1.8。假设是1.8版本（比较主流）,需要实现DefaultLifecycleObserver（间接实现了LifecycleObserver）接口。关于观察者的创建，Lifecycle.java中的注释有明确的说明。
- 使用DefaultLifecycleObserver的注意事项：sdk >= 24；同时，要添加依赖 : implementation "android.arch.lifecycle:common-java8:<版本>";

 * <p>
 * If you use <b>Java 8 Language</b>, then observe events with {@link DefaultLifecycleObserver}.
 * To include it you should add {@code "androidx.lifecycle:common-java8:<version>"} to your
 * build.gradle file.
 * <pre>
 * class TestObserver implements DefaultLifecycleObserver {
 *     {@literal @}Override
 *     public void onCreate(LifecycleOwner owner) {
 *         // your code
 *     }
 * }
 * </pre>
 * If you use <b>Java 7 Language</b>, Lifecycle events are observed using annotations.
 * Once Java 8 Language becomes mainstream on Android, annotations will be deprecated, so between
 * {@link DefaultLifecycleObserver} and annotations,
 * you must always prefer {@code DefaultLifecycleObserver}.
 * <pre>
 * class TestObserver implements LifecycleObserver {
 *   {@literal @}OnLifecycleEvent(ON_STOP)
 *   void onStopped() {}
 * }
 * </pre>

被观察者和观察者都有了，那么建立关联调用api即可。

五.观察者观察被观察者什么呢

这似乎是一句多余的话，在简介中已经提及到，是观察组件的生命周期，那自然是观察者去观察者被观察者的生命周期方法。的却如此，可是重要的东西多强调一次还是很有必要，在后面分析源码的时候，会从addObserver方法作为入口，而该方法会完成观察者和被观察者的准备工作。那么，准备工作的代码分析完成之后，我们该如何做下一步的源码分析呢？答案就是从被观察者（后续我们以Activity代替）的生命周期方法开始。Activity一共有7个生命周期方法，OnRestart我们不管，那么还有6个。但是我们只分析OnCreate和其它5个中的一个，选择onResume吧（其它四个同理，就略掉）。
除了addObserver方法做了一些准备工作，OnCreate也做了一些准备工作，当activity的onResume被调用的时候，观察者就知道了，知道activity的onResume方法被调用了。
以上，我们就总结成一句话：activity发送通知给观察者的时机是：其生命周期发生变化的时候。
这一段可能对一些同学来说，可能是多余的，但学习思路还是有必要捋清楚的，不仅能事半功倍，还能省更多的时间。好了，下面开始正真的源码分析，当然，源码分析过程中会有一个难点，这里先不提及，后面重点补充。

六.源码分析

请根据注释，按照序号的步骤进行分析；

6.1.从addObserver方法开始

//Lifecycle.java
@MainThread
public abstract void addObserver(@NonNull LifecycleObserver observer);

6.2.LifecycleRegistry类addObserver方法

Lifecycle的addObserver的为抽象方法，其唯一实现类为LifecycleRegistry，查看其addObserver方法

public void addObserver(@NonNull LifecycleObserver observer) {
    //1.初始状态值
    State initialState = mState == DESTROYED ? DESTROYED : INITIALIZED;
    //2.封装成ObserverWithState对象，在6.3中进行分析。参数observer是观察者
    ObserverWithState statefulObserver = new ObserverWithState(observer, initialState);
    ObserverWithState previous = mObserverMap.putIfAbsent(observer, statefulObserver);

    //备注：下方的方法在6.17之后再做分析，先将Lifecycle的实现原理捋出来
    if (previous != null) {
        return;
    }
    LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
    if (lifecycleOwner == null) {
        // it is null we should be destroyed. Fallback quickly
        return;
    }

    boolean isReentrance = mAddingObserverCounter != 0 || mHandlingEvent;
    State targetState = calculateTargetState(observer);
    mAddingObserverCounter++;
    while ((statefulObserver.mState.compareTo(targetState) < 0
            && mObserverMap.contains(observer))) {
        pushParentState(statefulObserver.mState);
        statefulObserver.dispatchEvent(lifecycleOwner, upEvent(statefulObserver.mState));
        popParentState();
        // mState / subling may have been changed recalculate
        targetState = calculateTargetState(observer);
    }

    if (!isReentrance) {
        // we do sync only on the top level.
        sync();
    }
    mAddingObserverCounter--;
}

6.3.ObserverWithState

分析其构造方法

//ObserverWithState是LifecycleRegistry的内部类
static class ObserverWithState {
    State mState;
    LifecycleEventObserver mLifecycleObserver;

    ObserverWithState(LifecycleObserver observer, State initialState) {
        //3.在6.4中分析Lifecycling.lifecycleEventObserver(observer)
        mLifecycleObserver = Lifecycling.lifecycleEventObserver(observer);
        mState = initialState;
    }

    void dispatchEvent(LifecycleOwner owner, Event event) {
        State newState = getStateAfter(event);
        mState = min(mState, newState);
        //12.调用的是LifecycleEventObserver的onStateChanged方法
        //13.在6.14中分析LifecycleEventObserver的onStateChanged方法
        mLifecycleObserver.onStateChanged(owner, event);
        mState = newState;
    }
}

6.4.Lifecycling类的静态方法

这里需要说明一下，由于在四中提到，我们使用jdk1.8版本，则观察者是实现DefaultLifecycleObserver，而DefaultLifecycleObserver是继承FullLifecycleObserver，则下方boolean isFullLifecycleObserver = true；
如果使用jdk1.7，则分析最后一行ReflectiveGenericLifecycleObserver即可；

@NonNull
static LifecycleEventObserver lifecycleEventObserver(Object object) {
    boolean isLifecycleEventObserver = object instanceof LifecycleEventObserver;
    boolean isFullLifecycleObserver = object instanceof FullLifecycleObserver;
    if (isLifecycleEventObserver && isFullLifecycleObserver) {
        return new FullLifecycleObserverAdapter((FullLifecycleObserver) object,
                (LifecycleEventObserver) object);
    }
    if (isFullLifecycleObserver) {
        //4.在6.5中进行分析FullLifecycleObserverAdapter
        return new FullLifecycleObserverAdapter((FullLifecycleObserver) object, null);
    }

    if (isLifecycleEventObserver) {
        return (LifecycleEventObserver) object;
    }

    final Class<?> klass = object.getClass();
    int type = getObserverConstructorType(klass);
    if (type == GENERATED_CALLBACK) {
        List<Constructor<? extends GeneratedAdapter>> constructors =
                sClassToAdapters.get(klass);
        if (constructors.size() == 1) {
            GeneratedAdapter generatedAdapter = createGeneratedAdapter(
                    constructors.get(0), object);
            return new SingleGeneratedAdapterObserver(generatedAdapter);
        }
        GeneratedAdapter[] adapters = new GeneratedAdapter[constructors.size()];
        for (int i = 0; i < constructors.size(); i++) {
            adapters[i] = createGeneratedAdapter(constructors.get(i), object);
        }
        return new CompositeGeneratedAdaptersObserver(adapters);
    }
    return new ReflectiveGenericLifecycleObserver(object);
}

6.5.分析FullLifecycleObserverAdapter

mFullLifecycleObserver赋值为观察者；
mLifecycleEventObserver赋值为null；
这里有个onStateChanged方法，得有个印象，后面会回来分析这里。

class FullLifecycleObserverAdapter implements LifecycleEventObserver {

    private final FullLifecycleObserver mFullLifecycleObserver;
    private final LifecycleEventObserver mLifecycleEventObserver;

    //5.赋值操作
    FullLifecycleObserverAdapter(FullLifecycleObserver fullLifecycleObserver,
            LifecycleEventObserver lifecycleEventObserver) {
        mFullLifecycleObserver = fullLifecycleObserver;
        mLifecycleEventObserver = lifecycleEventObserver;
    }

    //14.当被观察者生命周期发生了变化，会触发调用onStateChanged方法，参数1是被观察者，因为上文我们分析的是activity的onResume方法，对应的Lifecycle.Event是ON_RESUME，那么最终回调的是mFullLifecycleObserver.onResume(source);
    @Override
    public void onStateChanged(@NonNull LifecycleOwner source, @NonNull Lifecycle.Event event) {
        switch (event) {
            case ON_CREATE:
                mFullLifecycleObserver.onCreate(source);
                break;
            case ON_START:
                mFullLifecycleObserver.onStart(source);
                break;
            case ON_RESUME:
                //15.在6.15中分析FullLifecycleObserver类的方法
                mFullLifecycleObserver.onResume(source);
                break;
            case ON_PAUSE:
                mFullLifecycleObserver.onPause(source);
                break;
            case ON_STOP:
                mFullLifecycleObserver.onStop(source);
                break;
            case ON_DESTROY:
                mFullLifecycleObserver.onDestroy(source);
                break;
            case ON_ANY:
                throw new IllegalArgumentException("ON_ANY must not been send by anybody");
        }
        if (mLifecycleEventObserver != null) {
            mLifecycleEventObserver.onStateChanged(source, event);
        }
    }
}

经过6.1到6.5，我们分析完了addObserver方法，这里再补充一下，我们是基于jdk1.8实现的观察者，如果我们是基于jdk1.7实现的观察者，则源码分析的路线会不同，源码的内容会更多一些，会涉及到反射的实现（有兴趣的同学可以自行研究一下）。

6.6.分析被观察者（activity）的基类

从onCreate声明方法开始，内部可以看到ReportFragment.injectIfNeededIn(this)，进入ReportFragment类进行查看；

6.7.ReportFragment类的injectIfNeededIn方法

public static void injectIfNeededIn(Activity activity) {
    //6.根据不同判断执行不同逻辑

    if (Build.VERSION.SDK_INT >= 29) {
        activity.registerActivityLifecycleCallbacks(
                new LifecycleCallbacks());
    }

    android.app.FragmentManager manager = activity.getFragmentManager();
    if (manager.findFragmentByTag(REPORT_FRAGMENT_TAG) == null) {
        manager.beginTransaction().add(new ReportFragment(), REPORT_FRAGMENT_TAG).commit();
        manager.executePendingTransactions();
    }
}

这里有个版本的区分，先看大于等于29的情况,注册了一个监听，分析参数中的LifecycleCallbacks类。当activity的生命周期发生变化会执行下面的回调，最终执行ReportFragment中的dispatch方法；

static class LifecycleCallbacks implements Application.ActivityLifecycleCallbacks {

    //...

    @Override
    public void onActivityPostCreated(@NonNull Activity activity,
            @Nullable Bundle savedInstanceState) {
        dispatch(activity, Lifecycle.Event.ON_CREATE);
    }

    //...

    @Override
    public void onActivityPostResumed(@NonNull Activity activity) {
        dispatch(activity, Lifecycle.Event.ON_RESUME);
    }

    //...

}

而在api29以下，则在activity中添加了一个无UI的ReportFragment，在ReportFragment的生命周期方法中调用了ReportFragment中的dispatch方法；这里有细节需要补充一下，我们只要明白activity和fragment的生命周期方法的关系就可以理解，在ReportFragment的生命周期方法中调用dispatch方法（ReportFragment只利用了5个生命周期方法，onStart、onResume、onPause、onStop、onDestroy），能达到在activity声明中求方法中调用dispatch方法一样的效果。同样地，我们只分析一个声明周期方法，还是选取onResume，内部调用的是dispatch(Lifecycle.Event.ON_RESUME)方法。最终还是调用了跟api大于等于29的版本一样的方法。
这里总结一下，关于版本的问题，大于等于29，未使用添加无UI的ReportFragment方式，而是直接调用ReportFragment内部的方法，小于29的则使用了添加无UI的ReportFragment的方式；

6.8.dispatch方法

static void dispatch(@NonNull Activity activity, @NonNull Lifecycle.Event event) {
    if (activity instanceof LifecycleRegistryOwner) {
        ((LifecycleRegistryOwner) activity).getLifecycle().handleLifecycleEvent(event);
        return;
    }

    if (activity instanceof LifecycleOwner) {
        Lifecycle lifecycle = ((LifecycleOwner) activity).getLifecycle();
        if (lifecycle instanceof LifecycleRegistry) {
            //观察者默认间接实现LifecycleOwner
            //7.在6.9中分析
            ((LifecycleRegistry) lifecycle).handleLifecycleEvent(event);
        }
    }
}

6.9.分析handleLifecycleEvent方法

public void handleLifecycleEvent(@NonNull Lifecycle.Event event) {
    State next = getStateAfter(event);	//后面重点分析
    //8.在6.10中分析
    moveToState(next);
}

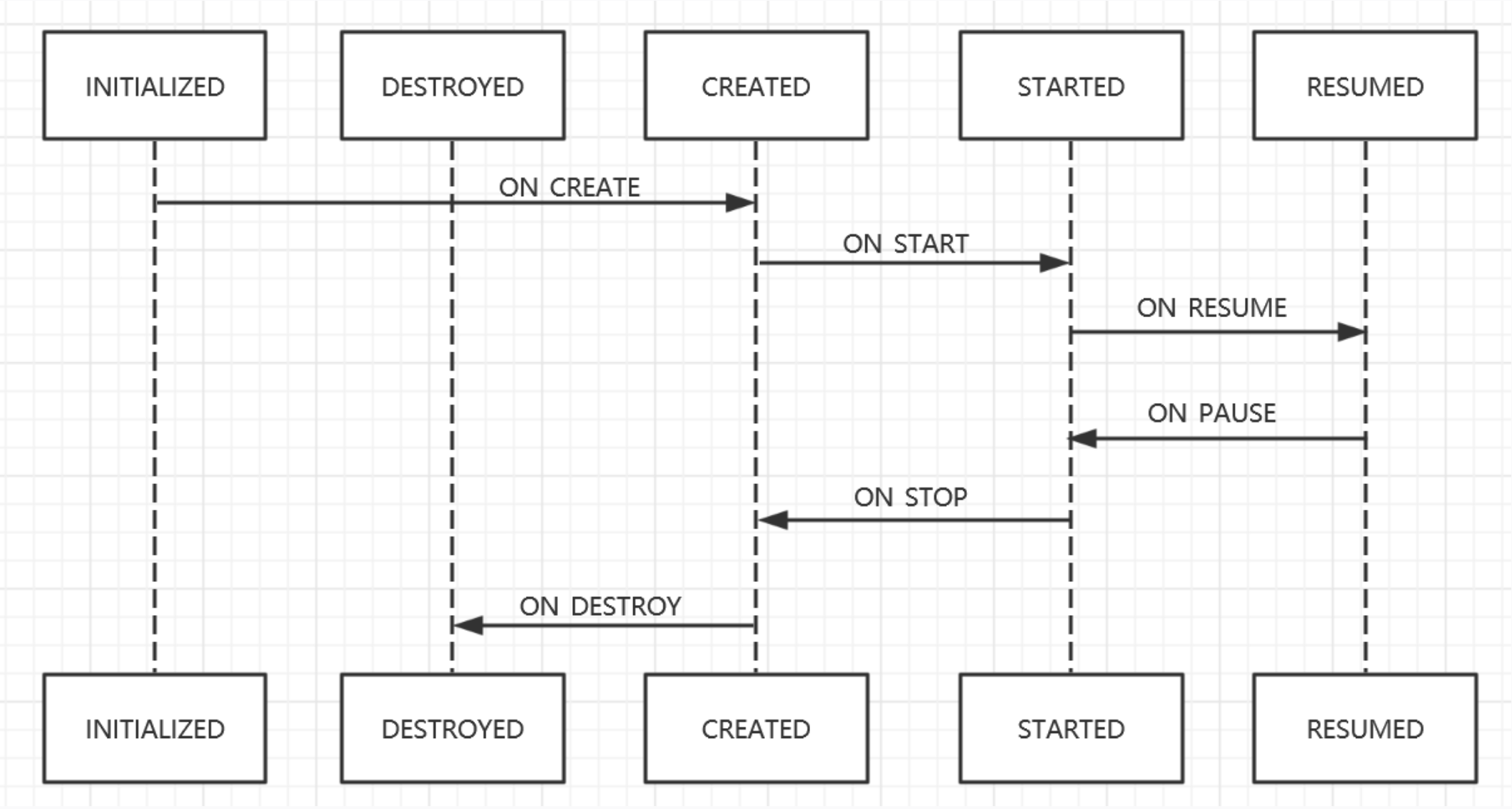

这里有个重点，就是Lifecycle.Event和Lifecycle.State,者两个枚举类都跟被观察者有关系。我们先记住，后面重点分析；

public enum Event {
    /**
     * Constant for onCreate event of the {@link LifecycleOwner}.
     */
    ON_CREATE,
    ON_START,
    ON_RESUME,
    ON_PAUSE,
    ON_STOP,
    ON_DESTROY,
    ON_ANY
}

public enum State {
    DESTROYED,
    INITIALIZED,
    CREATED,
    STARTED,
    RESUMED;
    public boolean isAtLeast(@NonNull State state) {
        return compareTo(state) >= 0;
    }
}

6.10.分析moveToState

//先分析sync，其它的细节稍后着重讲解
private void moveToState(State next) {
    if (mState == next) {
        return;
    }
    mState = next;
    if (mHandlingEvent || mAddingObserverCounter != 0) {
        mNewEventOccurred = true;
        // we will figure out what to do on upper level.
        return;
    }
    mHandlingEvent = true;
    //9.在6.11中分析
    sync();
    mHandlingEvent = false;
}

6.11.分析sync

//先分析backwardPass，其它的细节稍后再回来分析
private void sync() {
    LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
    if (lifecycleOwner == null) {
        throw new IllegalStateException("LifecycleOwner of this LifecycleRegistry is already"
                + "garbage collected. It is too late to change lifecycle state.");
    }
    while (!isSynced()) {
        mNewEventOccurred = false;
        // no need to check eldest for nullability, because isSynced does it for us.
        if (mState.compareTo(mObserverMap.eldest().getValue().mState) < 0) {
            //10.在6.12中分析，分析该方法和分析forwardPass效果是一样的，选取一个即可
            backwardPass(lifecycleOwner);
        }
        Entry<LifecycleObserver, ObserverWithState> newest = mObserverMap.newest();
        if (!mNewEventOccurred && newest != null
                && mState.compareTo(newest.getValue().mState) > 0) {
            forwardPass(lifecycleOwner);
        }
    }
    mNewEventOccurred = false;
}

6.12.分析backwardPass

//observer.dispatchEvent(lifecycleOwner, event)，其它的细节稍后再回来分析
private void backwardPass(LifecycleOwner lifecycleOwner) {
    Iterator<Entry<LifecycleObserver, ObserverWithState>> descendingIterator =
            mObserverMap.descendingIterator();
    while (descendingIterator.hasNext() && !mNewEventOccurred) {
        Entry<LifecycleObserver, ObserverWithState> entry = descendingIterator.next();
        ObserverWithState observer = entry.getValue();
        while ((observer.mState.compareTo(mState) > 0 && !mNewEventOccurred
                && mObserverMap.contains(entry.getKey()))) {
            Event event = downEvent(observer.mState);
            pushParentState(getStateAfter(event));
            //11.在6.13中分析，即分析ObserverWithState的dispatchEvent方法
            observer.dispatchEvent(lifecycleOwner, event);
            popParentState();
        }
    }
}

6.13.ObserverWithState的dispatchEvent方法

ObserverWithState类在步骤6.3中我们已经分析过，现在我们回到6.3中的dispatchEvent，步骤是第12；

6.14.LifecycleEventObserver的onStateChanged方法

public interface LifecycleEventObserver extends LifecycleObserver {
    //13.找到LifecycleEventObserver的实现类，分析其onStateChanged即可
    //我们结合6.4和6.5的分析可以知道，其实现类是FullLifecycleObserverAdapter（温馨提示：若是jdk1.7则实现类是其它类）
    //回到6.5中，分析FullLifecycleObserverAdapter的onStateChanged方法
    void onStateChanged(@NonNull LifecycleOwner source, @NonNull Lifecycle.Event event);
}

6.15.FullLifecycleObserver类

最终是调用了FullLifecycleObserver实现类中的方法，而其唯一的实现类是DefaultLifecycleObserver，在4.1中我们已经提到过DefaultLifecycleObserver类。所以最终的实现则是在DefaultLifecycleObserver的实现类（观察者）中，从而完成了，activity生命周期发生变化，观察者类中的方法得到了调用（即感应到了变化）；

interface FullLifecycleObserver extends LifecycleObserver {

    void onCreate(LifecycleOwner owner);

    void onStart(LifecycleOwner owner);

    void onResume(LifecycleOwner owner);

    void onPause(LifecycleOwner owner);

    void onStop(LifecycleOwner owner);

    void onDestroy(LifecycleOwner owner);
}

6.16.简单总结一下

到此，我们知道了被观察者的生命周期方法得到调用后，观察者中的方法会相应的得到回调，从而实现观察者能感知到被观察者生命周期的变化的原理；
6.9-6.12中省略了一些部分，这是lifecycle难点的部分。我们着重分析一下，为了避免让源码分析起来产生混乱的感觉，分析6.9-6.12的代码会重新贴出；

七.源码细节

7.1.分析getStateAfter方法

分析getStateAfter方法，其作用：将activity对应的生命周期的枚举状态转换成Lifecycle专用的枚举状态。这样做的原因：Lifecycle不需要知道activity所有的状态，只关心结束和是否是活动的；

static State getStateAfter(Event event) {
    switch (event) {
        case ON_CREATE:
        case ON_STOP:
            return CREATED;
        case ON_START:
        case ON_PAUSE:
            return STARTED;
        case ON_RESUME:
            return RESUMED;
        case ON_DESTROY:
            return DESTROYED;
        case ON_ANY:
            break;
    }
    throw new IllegalArgumentException("Unexpected event value " + event);
}

分析到这里之后，我们需要回到6.1中的addObserver方法了，是时候深入细节了（其实，看到6.16已经够了，但是如果还想深入，那么深入细节是有必要的）。

7.2.再次分析addObserver

在此，我们假设addObserver只被调用了一次。

public void addObserver(@NonNull LifecycleObserver observer) {
    State initialState = mState == DESTROYED ? DESTROYED : INITIALIZED;
    ObserverWithState statefulObserver = new ObserverWithState(observer, initialState);
    //1.在7.3.中分析mObserverMap.putIfAbsent(observer, statefulObserver)
    ObserverWithState previous = mObserverMap.putIfAbsent(observer, statefulObserver);

    //5.根据7.3.可知，previous = null
    if (previous != null) {
        return;
    }

    //6.获取到被观察者，并判断是否被回收
    LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
    if (lifecycleOwner == null) {
        // it is null we should be destroyed. Fallback quickly
        return;
    }

    //7.isReentrance = false（mAddingObserverCounter默认为0，mHandlingEvent默认为false）
    boolean isReentrance = mAddingObserverCounter != 0 || mHandlingEvent;

    //8.在7.5中分析calculateTargetState方法
    // targetState = INITIALIZED
    State targetState = calculateTargetState(observer);
    //mAddingObserverCounter = 1
    mAddingObserverCounter++;
    //statefulObserver.mState = INITIALIZED,前面已经分析过，很明显 statefulObserver.mState.compareTo(targetState) = 0，故不会进入while循环
    while ((statefulObserver.mState.compareTo(targetState) < 0
            && mObserverMap.contains(observer))) {
        pushParentState(statefulObserver.mState);
        statefulObserver.dispatchEvent(lifecycleOwner, upEvent(statefulObserver.mState));
        popParentState();
        // mState / subling may have been changed recalculate
        targetState = calculateTargetState(observer);
    }

    //9.isReentrance = false，故执行sync方法，在7.6中分析sync
    if (!isReentrance) {
        // we do sync only on the top level.
        sync();
    }
    //mAddingObserverCounter = 0
    mAddingObserverCounter--;
}

7.3.mObserverMap.putIfAbsent(observer, statefulObserver)

private HashMap<K, Entry<K, V>> mHashMap = new HashMap<>();

public V putIfAbsent(@NonNull K key, @NonNull V v) {
    //2.返回Null，因为第一次执行addObserver时，mHashMap未存储任何键值对
    Entry<K, V> current = get(key);
    //不执行
    if (current != null) {
        return current.mValue;
    }
    //3.在7.4中分析一下put(key, v)方法
    //4.存储key-观察者，value=Entry<key, ObserverWithState（key，initialState = INITIALIZED）>
    mHashMap.put(key, put(key, v));
    return null;
}

7.4.put(key, v)

protected Entry<K, V> put(@NonNull K key, @NonNull V v) {
    Entry<K, V> newEntry = new Entry<>(key, v);
    //4.1.长度加1
    mSize++;
    if (mEnd == null) {
        //4.2.mStart = mEnd = Entry<key, ObserverWithState（key，initialState = INITIALIZED）
        mStart = newEntry;
        mEnd = mStart;
        //4.3.返回Entry<key, ObserverWithState（key，initialState = INITIALIZED）
        //回溯到putIfAbsent->addObserver方法中，即步骤1中继续分析
        return newEntry;
    }

    //未执行，不用管
    mEnd.mNext = newEntry;
    newEntry.mPrevious = mEnd;
    mEnd = newEntry;
    return newEntry;
}

7.5.calculateTargetState

返回State最小的生命周期状态:这个最小是怎么理解呢？如下:DESTROYED = 0,INITIALIZED = 1,CREATED = 2,STARTED = 3,RESUMED = 4,很清晰吧。

private State calculateTargetState(LifecycleObserver observer) {
    //顺着上面的分析previous首次是为null
    Entry<LifecycleObserver, ObserverWithState> previous = mObserverMap.ceil(observer);
    //siblingState = null
    State siblingState = previous != null ? previous.getValue().mState : null;
    //parentState = null (mParentStates是个集合，刚开始是空)
    State parentState = !mParentStates.isEmpty() ? mParentStates.get(mParentStates.size() - 1) : null;
    //最终返回的是 INITIALIZED，返回到7.2中的步骤8
    return min(min(mState, siblingState), parentState);
}

7.6.sync

同步生命周期状态

private void sync() {
    LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
    if (lifecycleOwner == null) {
        throw new IllegalStateException("LifecycleOwner of this LifecycleRegistry is already"
                + "garbage collected. It is too late to change lifecycle state.");
    }
    //10.在7.7.中分析isSynced()方法
    //根据7.7.可知!isSynced()=false，不执行while语句
    while (!isSynced()) {
        mNewEventOccurred = false;
        // no need to check eldest for nullability, because isSynced does it for us.
        if (mState.compareTo(mObserverMap.eldest().getValue().mState) < 0) {
            backwardPass(lifecycleOwner);
        }
        Entry<LifecycleObserver, ObserverWithState> newest = mObserverMap.newest();
        if (!mNewEventOccurred && newest != null
                && mState.compareTo(newest.getValue().mState) > 0) {
            forwardPass(lifecycleOwner);
        }
    }
    //更改标记
    mNewEventOccurred = false;
}

7.7.isSynced

返回当前生命状态是否一致不相同为false

private boolean isSynced() {
    //没有观察者时返回true
    if (mObserverMap.size() == 0) {
        return true;
    }
    //获取最先添加进来的观察者生命周期状态
    State eldestObserverState = mObserverMap.eldest().getValue().mState;
    //获取最后（最近）添加进来的观察者生命周期状态
    State newestObserverState = mObserverMap.newest().getValue().mState;
    //如果最先的和最后的Observer的状态不一致或者当前的状态和最新的状态不一致时，那么需要进行状态同步
    //7.4中已经分析过
    //首次情况下，mStart = mEnd = Entry<key, ObserverWithState（key，initialState = INITIALIZED），故eldestObserverState = newestObserverState = INITIALIZED
    //返回结果为true，回到步骤10
    return eldestObserverState == newestObserverState && mState == newestObserverState;
}

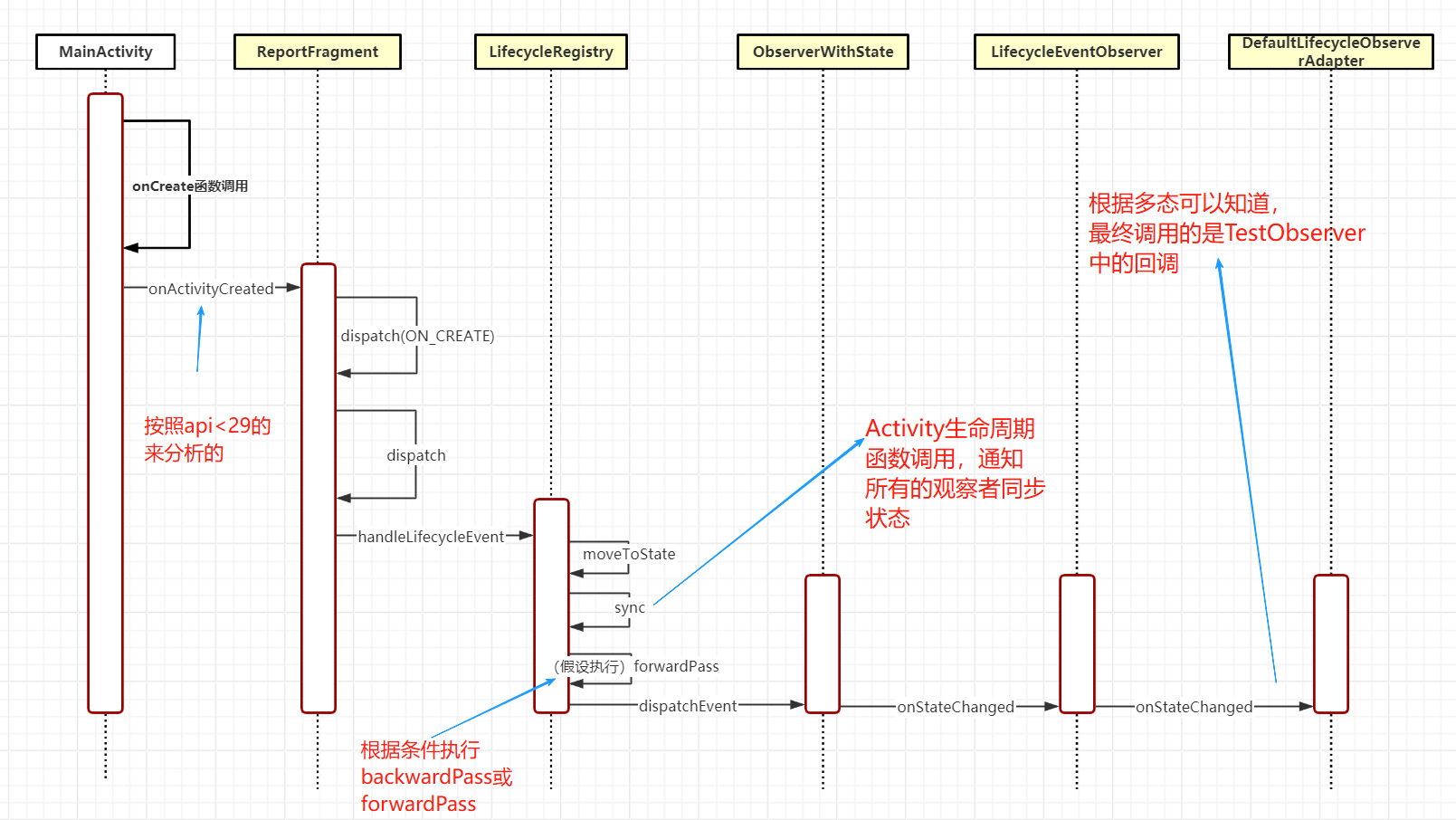

7.8.小结

初始状态分析完毕了，我们需要举例被观察者具体的生命周期方法被调用时，源代码的执行情况，我们就那activity仅执行了onCreate方法为例。这里有细节需要注意，项目中依赖的是androidx.appcompat:appcompat:1.0.0,有必要把基类activity的继承关系梳理一下，如此，才能知道activity的onCreate方法执行时代码的走向。基类activity继承RxAppCompatActivity，间接继承AppCompatActivity->FragmentActivity->,activity的onCreate的方法执行会触发FragmentActivity的onCreate，继而触发ComponentActivity的onCreate方法，ComponentActivity的onCreate执行初始化的工作，执行完毕后，FragmentActivity的onCreate会执行mFragmentLifecycleRegistry.handleLifecycleEvent(Lifecycle.Event.ON_CREATE)方法，实际上就是6.9的方法。
上面的流程需要自己整理一下，最好运行一个demo，具体跟踪一下，之所以啰嗦，是因为handleLifecycleEvent方法多处都有调用，继承关系不同等因素会导致源码跟踪的路线不同。下面就正在开始分析了。直接贴出handleLifecycleEvent,不在6.9中直接添加注释，免得引起混乱。

7.9.传入具体参数分析handleLifecycleEvent

public void handleLifecycleEvent(@NonNull Lifecycle.Event event) {
	//11.参数为 Lifecycle.Event.ON_CREATE，执行后next = CREATED
    State next = getStateAfter(event);
    //在7.10.中分析moveToState，参数为CREATED
    moveToState(next);
}

7.10.传入具体参数分析moveToState

//next = CREATED
private void moveToState(State next) {
    //mState = INITIALIZED，故不执行if语句
    if (mState == next) {
        return;
    }

    //更新 mState = CREATED
    mState = next;

    //此时 mHandlingEvent = false mAddingObserverCounter = 0，前面已经分析过（7.2）
    if (mHandlingEvent || mAddingObserverCounter != 0) {
        mNewEventOccurred = true;
        // we will figure out what to do on upper level.
        return;
    }

    //更新mHandlingEvent
    mHandlingEvent = true;
    //12.在7.11.中再次分析sync
    sync();
    //更新mHandlingEvent
    mHandlingEvent = false;
}

7.11.再次分析sync

private void sync() {
    //略
    //13.分析isSynced
    //eldestObserverState = newestObserverState （mStart = mEnd = Entry<key, ObserverWithState（key，initialState = INITIALIZED））
    //但是 mState（ = CREATED ） ！= newestObserverState （ = INITIALIZED ）
    //故!isSynced = true，执行while语句
    while (!isSynced()) {
        //更改标记
        mNewEventOccurred = false;
        //14.mState = CREATED = 2，mObserverMap.eldest().getValue().mState = INITIALIZED =  1，结果是false，mState.compareTo(mObserverMap.eldest().getValue().mState > 0,故不进入if语句
        if (mState.compareTo(mObserverMap.eldest().getValue().mState) < 0) {
            backwardPass(lifecycleOwner);
        }
        //15.newest = mEnd = mStart = Entry<key, ObserverWithState（key，initialState = INITIALIZED） （ 在7.4中已经分析）
        Entry<LifecycleObserver, ObserverWithState> newest = mObserverMap.newest();
        //三个条件都成立，执行forwardPass
        if (!mNewEventOccurred && newest != null
                && mState.compareTo(newest.getValue().mState) > 0) {
            //16.在7.12中分析
            forwardPass(lifecycleOwner);
        }
    }
    //更改标记
    mNewEventOccurred = false;
}

7.12.分析forwardPass

结论先行：遍历观察者集合，当观察者生命周期状态小于当前生命周期状态时分发事件

private void forwardPass(LifecycleOwner lifecycleOwner) {
    Iterator<Entry<LifecycleObserver, ObserverWithState>> ascendingIterator =
            mObserverMap.iteratorWithAdditions();
    //显然是执行while语句的
    while (ascendingIterator.hasNext() && !mNewEventOccurred) {
        Entry<LifecycleObserver, ObserverWithState> entry = ascendingIterator.next();
        ObserverWithState observer = entry.getValue();
        //17.结合6.1中的1和2，以及7.2中的1，可以得知
        //observer.mState = INITIALIZED = 1，而 mState = CREATED = 2
        //故条件1成立，条件2和条件3显然也是成立的，执行while语句
        while ((observer.mState.compareTo(mState) < 0 && !mNewEventOccurred
                && mObserverMap.contains(entry.getKey()))) {
            //将INITIALIZED添加到成员变量mParentStates中
            pushParentState(observer.mState);
            //18.这一步很熟悉了，之前分析过了，参数2是将CREATED转换成ON_START
            observer.dispatchEvent(lifecycleOwner, upEvent(observer.mState));
            //移除成员变量mParentStates集合中的最后一个元素
            popParentState();
        }
    }
}

到此，我觉得可以结束该篇笔记了。当然还有细节，有了上面的分析之后，其它的细节即便是遇到了（在总结Livedata的时候，会补充Lifecycle的另外一个细节），按照上面的分析思路，也比较好处理了。

八.总结

写的有点多，但是是有一个完整的思维路线的，一些位置有些重复，但是还是有必要。使用jdk1.7时，相应的源码分析思路简单提及一下，我们要分析的就是ReflectiveGenericLifecycleObserver类，在6.4中提到过。

class ReflectiveGenericLifecycleObserver implements LifecycleEventObserver {
    private final Object mWrapped;
    private final CallbackInfo mInfo;

    ReflectiveGenericLifecycleObserver(Object wrapped) {
        mWrapped = wrapped;
        //这里的参数是观察者的class对象---非常重要
        mInfo = ClassesInfoCache.sInstance.getInfo(mWrapped.getClass());
    }

    @Override
    public void onStateChanged(LifecycleOwner source, Event event) {
        mInfo.invokeCallbacks(source, event, mWrapped);
    }
}

分析ClassesInfoCache.sInstance.getInfo(mWrapped.getClass());

//ClassesInfoCache.java
CallbackInfo getInfo(Class klass) {
    CallbackInfo existing = mCallbackMap.get(klass);
    if (existing != null) {
        return existing;
    }
    existing = createInfo(klass, null);
    return existing;
}

//createInfo			参数2为null
private CallbackInfo createInfo(Class klass, @Nullable Method[] declaredMethods) {
    Class superclass = klass.getSuperclass();
    Map<MethodReference, Lifecycle.Event> handlerToEvent = new HashMap<>();
    if (superclass != null) {
        CallbackInfo superInfo = getInfo(superclass);
        if (superInfo != null) {
            handlerToEvent.putAll(superInfo.mHandlerToEvent);
        }
    }

    Class[] interfaces = klass.getInterfaces();
    for (Class intrfc : interfaces) {
        for (Map.Entry<MethodReference, Lifecycle.Event> entry : getInfo(
                intrfc).mHandlerToEvent.entrySet()) {
            verifyAndPutHandler(handlerToEvent, entry.getKey(), entry.getValue(), klass);
        }
    }

    //这里会执行后面，就是一个反射的方法。最终是把观察者中的所有方法都获取到了
    Method[] methods = declaredMethods != null ? declaredMethods : getDeclaredMethods(klass);
    boolean hasLifecycleMethods = false;
    for (Method method : methods) {
        //注解的使用
        OnLifecycleEvent annotation = method.getAnnotation(OnLifecycleEvent.class);
        if (annotation == null) {
            continue;
        }
        hasLifecycleMethods = true;
        Class<?>[] params = method.getParameterTypes();
        //@OnLifecycleEvent(Lifecycle.Event.ON_CREATE)，指括号内的参数个数，TestObserver类目前都是一个
        int callType = CALL_TYPE_NO_ARG;
        //会执行该位置
        //如：@OnLifecycleEvent(Lifecycle.Event.ON_CREATE)
        if (params.length > 0) {
            callType = CALL_TYPE_PROVIDER;
            if (!params[0].isAssignableFrom(LifecycleOwner.class)) {
                throw new IllegalArgumentException(
                        "invalid parameter type. Must be one and instanceof LifecycleOwner");
            }
        }
        Lifecycle.Event event = annotation.value();

        if (params.length > 1) {
            callType = CALL_TYPE_PROVIDER_WITH_EVENT;
            if (!params[1].isAssignableFrom(Lifecycle.Event.class)) {
                throw new IllegalArgumentException(
                        "invalid parameter type. second arg must be an event");
            }
            if (event != Lifecycle.Event.ON_ANY) {
                throw new IllegalArgumentException(
                        "Second arg is supported only for ON_ANY value");
            }
        }
        if (params.length > 2) {
            throw new IllegalArgumentException("cannot have more than 2 params");
        }
        //将目标的method做了一层封装，分析MethodReference
        MethodReference methodReference = new MethodReference(callType, method);
        //再次包装methodReference
        verifyAndPutHandler(handlerToEvent, methodReference, event, klass);
    }
    CallbackInfo info = new CallbackInfo(handlerToEvent);
    mCallbackMap.put(klass, info);
    mHasLifecycleMethods.put(klass, hasLifecycleMethods);
    //最终返回info，说明：CallbackInfo包含的有观察者类定义的方法的信息
    return info;
}

分析new MethodReference(callType, method);

static class MethodReference {
    final int mCallType;
    final Method mMethod;

    MethodReference(int callType, Method method) {
        mCallType = callType;
        mMethod = method;
        mMethod.setAccessible(true);
    }

    void invokeCallback(LifecycleOwner source, Lifecycle.Event event, Object target) {
        //noinspection TryWithIdenticalCatches
        try {
            switch (mCallType) {
                case CALL_TYPE_NO_ARG:
                    mMethod.invoke(target);
                    break;
                case CALL_TYPE_PROVIDER:
                    mMethod.invoke(target, source);
                    break;
                case CALL_TYPE_PROVIDER_WITH_EVENT:
                    mMethod.invoke(target, source, event);
                    break;
            }
        } catch (InvocationTargetException e) {
            throw new RuntimeException("Failed to call observer method", e.getCause());
        } catch (IllegalAccessException e) {
            throw new RuntimeException(e);
        }
    }

    @Override
    public boolean equals(Object o) {
        if (this == o) {
            return true;
        }
        if (o == null || getClass() != o.getClass()) {
            return false;
        }

        MethodReference that = (MethodReference) o;
        return mCallType == that.mCallType && mMethod.getName().equals(that.mMethod.getName());
    }

    @Override
    public int hashCode() {
        return 31 * mCallType + mMethod.getName().hashCode();
    }
}

到此，对Lifecycle是已经有一个很深入的了解了。

目录CONTENT

Jetpack组件-一-Lifecycle

一.前言

二.简介

三.实现原理

四.使用

4.1.注意事项

五.观察者观察被观察者什么呢

六.源码分析

6.1.从addObserver方法开始

6.2.LifecycleRegistry类addObserver方法

6.3.ObserverWithState

6.4.Lifecycling类的静态方法

6.5.分析FullLifecycleObserverAdapter

6.6.分析被观察者（activity）的基类

6.7.ReportFragment类的injectIfNeededIn方法

6.8.dispatch方法

6.9.分析handleLifecycleEvent方法

6.10.分析moveToState

6.11.分析sync

6.12.分析backwardPass

6.13.ObserverWithState的dispatchEvent方法

6.14.LifecycleEventObserver的onStateChanged方法

6.15.FullLifecycleObserver类

6.16.简单总结一下

七.源码细节

7.1.分析getStateAfter方法

7.2.再次分析addObserver

7.3.mObserverMap.putIfAbsent(observer, statefulObserver)

7.4.put(key, v)

7.5.calculateTargetState

7.6.sync

7.7.isSynced

7.8.小结

7.9.传入具体参数分析handleLifecycleEvent

7.10.传入具体参数分析moveToState

7.11.再次分析sync

7.12.分析forwardPass

八.总结

评论区
