Binder-应用层

慢行的骑兵
2021-09-27 / 0 评论 / 0 点赞 / 46 阅读 / 3,227 字
  • Java层的Binder对学习Framework层的源码有很大的帮助;

一.进程间通信的基本原理

1.Binder是什么

  • IPC的机制(面试这样回答是不够的,这里只考虑对进程间通信学习的理解)

2.什么时候要使用到进程间通信

  • AMS和ActivityThread之间的通信等等;
  • 项目中的使用场景(建议单独开进程);
    • 1.WebView加载
    • 2.图片加载(下载图片是非常耗内存的,另外一个进程的话本地的进程安全性更有保障)
      • 下载的进程很容易出错,即便是下载的进程挂掉了,但是不会影响主进程;
    • 3.推送
    • 4.双进程守护
  • 像一些系统服务,获取输入法服务、闹钟服务、摄像头服务、电话服务,都是需要进程间的通讯;
  • 大型项目都会使用到多进程;

3.为什么要多进程

  • 虚拟机分配给每一个应用的内存是有限制的(每一个进程的内存大小存在限制);

4.进程间通信为什么要用到Binder

  • 主要是基于性能、稳定性和安全性几方面的原因(详细请看《AMS服务执行流程》一文)。

二.Android增加Binder的原因

1.Binder与传统IPC对比

  • 这里只列出了比较有代表性的几种

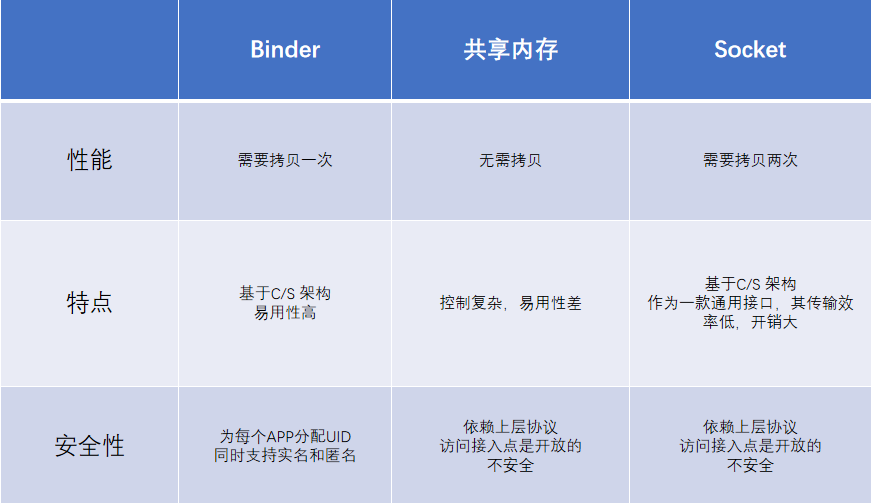

01.Binder与传统IPC对比

2.Binder拷贝一次的解释

  • 传统的IPC传输数据

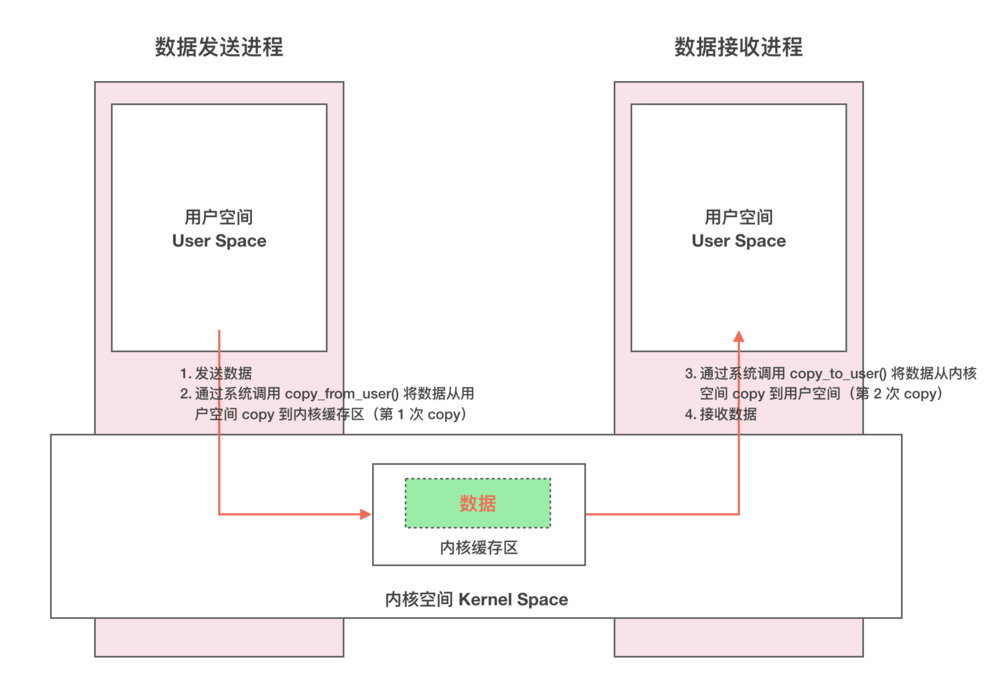

02.传统的IPC传递数据

  • 服务端的空间和内核空间都会映射到同一个地方(通过mmap机制,将内核空间和用户空间都映射到同一块物理内存。共享内存无需拷贝的解释:实现发送端、接收端和内核空间都在一块物理空间,也是通过mmap实现的)

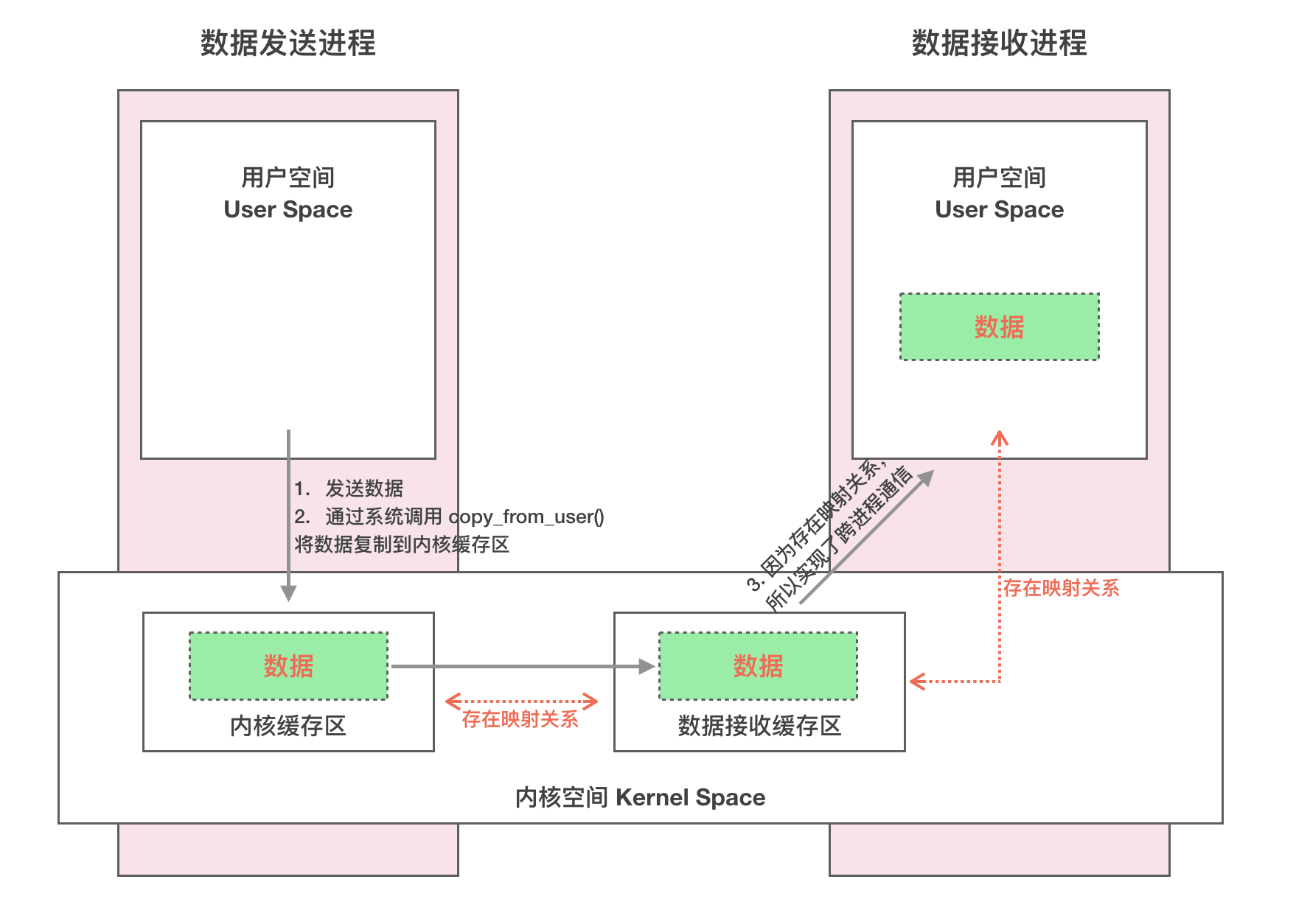

03.Binder传输数据

3.选择Binder的原因

  • 既然共享内存通过mmap实现三端都映射到同一块内存,那为什么Binder不这么做?
    • 共享内存,将客户端和服务端映射到同一块内存,需要同步机制(比较容易出现数据不同步,死锁等问题),从而控制比较复杂,开销大。而采用C/S架构,易用性高,故Binder才选择了一次拷贝,相对而言牺牲了一点性能;
  • mmap,简单理解:虚拟地址映射到物理地址;
  • 为什么不选择Socket:Socket作为通用的接口,其传输效率是比较低的,主要是跨网络的通信。而进程的通信是高速的;
  • 最主要的一点,安全性;
    • PID是进程间唯一的标识,共享内存,Socket是通过上层协议。如Socket传输数据,一般是把数据打包成一个包,PID是放在包里面的,那么系统看到的PID由App控制。
    • 而Binder的PID和UID是系统分配的;
    • Binder还支持实名和匿名;

三.源码分析

  • AIDL的源码分析,从如何获得另外一个进程的对象 的角度来分析

    • 1.客户端如何获取到AIDL的句柄的
    • 2.通过这个句柄是如何调到服务端的呢
    • 3.服务端又是如何做处理的
  • 查看AIDL文件的结构

    • Stub类:抽象类,继承自Binder,实现了定义的AIDL接口
    • Proxy类:实体类,实现了定义的AIDL接口

1.获取AIDL接口的方法

//点击查看
ILeoAidl.Stub.asInterface(service)
//在不同进程,得到Proxy对象(用来发送数据)
//客户端拿到句柄之后

// _data和_reply包
//调用方法传的参数
android.os.Parcel _data = android.os.Parcel.obtain();
//服务端返回的数据
android.os.Parcel _reply = android.os.Parcel.obtain();
//校验:每一个服务不止一个AIDL
_data.writeInterfaceToken(DESCRIPTOR);

//将传输的数据写入到包里面
_data.writeInt(1);
person.writeToParcel(_data, 0);
//关键性的代码
//调用之后,客户端会把线程挂起来,直到服务端有数据返回,客户端线程才会继续运行
//参数4;0,表示客户端可以发送到服务端,,服务端可以返回
//1.客户端发到服务端,服务端不以返回
//调用transact方法后,就到了Binder---> 然后就会调用服务端的Stub类的onTransact方法
//transact的底层原理是在c里面,暂时不做深入研究
boolean _status = mRemote.transact(Stub.TRANSACTION_addPerson, _data, _reply, 0);
//服务端有数据处理异常,也会写入
_reply.readException();
  • 在服务端,描述符被初始化。在客户端描述符并不会初始化。比较描述符的原因:客户端和服务端有可能是在同一个进程,在同一个进程则不需要经过Binder;
  • 分析服务端的Stub类的onTransact方法
public boolean onTransact(int code, android.os.Parcel data, android.os.Parcel reply, int flags) throws android.os.RemoteException {
    java.lang.String descriptor = DESCRIPTOR;
    switch (code) {
        //...
        case TRANSACTION_addPerson: {
            data.enforceInterface(descriptor);
            com.xx.leo_service.Person _arg0;
            if ((0 != data.readInt())) {
                _arg0 = com.xx.leo_service.Person.CREATOR.createFromParcel(data);
            } else {
                _arg0 = null;
            }
            //调用具体实现类的addPerson方法,即定义的服务类中的Binder类(new ILeoAidl.Stub())的addPerson方法
            //到此就实现了,从客户端到服务端的调用
            //服务端通过reply进行返回
            this.addPerson(_arg0);
            reply.writeNoException();
            return true;
        }
        //...
    }
}

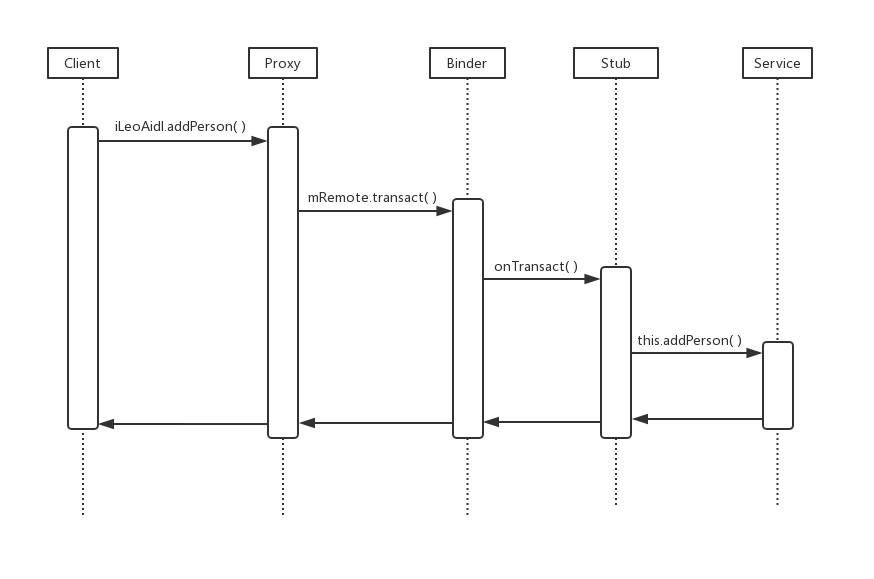

  • 总结,客户端到服务端的时序图

04.客户端到服务端的调用

2.如何通过bindService去绑定服务的

  • 源码分析(sdk版本 = 28)

2.1.bindService分析

//ContextWrapper类
Context mBase;
public boolean bindService(Intent service, ServiceConnection conn,
        int flags) {
    //调用Context实现类
    return mBase.bindService(service, conn, flags);
}
  • ContextImpl实现类
public boolean bindService(Intent service, ServiceConnection conn,
        int flags) {
    warnIfCallingFromSystemProcess();
    return bindServiceCommon(service, conn, flags, mMainThread.getHandler(), getUser());
}

private boolean bindServiceCommon(Intent service, ServiceConnection conn, int flags, Handler
        handler, UserHandle user) {
    IServiceConnection sd;
    //...

		//调用AMS的bindService
        int res = ActivityManager.getService().bindService(
            mMainThread.getApplicationThread(), getActivityToken(), service,
            service.resolveTypeIfNeeded(getContentResolver()),
            sd, flags, getOpPackageName(), user.getIdentifier());
        //...
        return res != 0;
    } catch (RemoteException e) {
        throw e.rethrowFromSystemServer();
    }
}
  • 分析AMS的bindService
//内部执行的事情
//创建服务,绑定服务
public int bindService(IApplicationThread caller, IBinder token, Intent service,
        String resolvedType, IServiceConnection connection, int flags, String callingPackage,
        int userId) throws TransactionTooLargeException {
    enforceNotIsolatedCaller("bindService");

    // Refuse possible leaked file descriptors
    if (service != null && service.hasFileDescriptors() == true) {
        throw new IllegalArgumentException("File descriptors passed in Intent");
    }

    if (callingPackage == null) {
        throw new IllegalArgumentException("callingPackage cannot be null");
    }

	//进行了一个同步的处理
    synchronized(this) {
		//分析bindServiceLocked
        return mServices.bindServiceLocked(caller, token, service,
                resolvedType, connection, flags, callingPackage, userId);
    }
}
  • ActiveServices的bindServiceLocked
int bindServiceLocked(IApplicationThread caller, IBinder token, Intent service,
        String resolvedType, final IServiceConnection connection, int flags,
        String callingPackage, final int userId) throws TransactionTooLargeException {
    //...

    try {
        //...

        if ((flags&Context.BIND_AUTO_CREATE) != 0) {
            s.lastActivity = SystemClock.uptimeMillis();
			//分析1
			//a进程访问b进程
			//b进程没有启动   是如何执行的
			//b进程启动了,但是service没有创建出来
            if (bringUpServiceLocked(s, service.getFlags(), callerFg, false,
                    permissionsReviewRequired) != null) {
                return 0;
            }
        }

        //...
        if (s.app != null && b.intent.received) {
            //...
            if (b.intent.apps.size() == 1 && b.intent.doRebind) {
				//分析2   绑定服务   分两种情况
				//之前没有绑定服务,回调onBind
				//之前绑定服务,调用onRebind
                requestServiceBindingLocked(s, b.intent, callerFg, true);
            }
        }

		//...
    }

	//...
    return 1;
}
  • 分析bringUpServiceLocked
private String bringUpServiceLocked(ServiceRecord r, int intentFlags, boolean execInFg,
        boolean whileRestarting, boolean permissionsReviewRequired)
        throws TransactionTooLargeException {
    //...

    if (!isolated) {
        app = mAm.getProcessRecordLocked(procName, r.appInfo.uid, false);
        if (DEBUG_MU) Slog.v(TAG_MU, "bringUpServiceLocked: appInfo.uid=" + r.appInfo.uid
                    + " app=" + app);
        //app已经创建了
        if (app != null && app.thread != null) {
            try {
                app.addPackage(r.appInfo.packageName, r.appInfo.longVersionCode, mAm.mProcessStats);
				//分析
                realStartServiceLocked(r, app, execInFg);
                return null;
            }

			//...

        }
    }
    //app没有启动
    //分析startProcessLocked,
    //===》startProcessLocked(会有多个重载方法调用)
   	//===》startProcess
    //最终通过Process.start创建了进程
    if (app == null && !permissionsReviewRequired) {
            if ((app=mAm.startProcessLocked(procName, r.appInfo, true, intentFlags,
                    hostingType, r.name, false, isolated, false)) == null) {
                String msg = "Unable to launch app "
                        + r.appInfo.packageName + "/"
                        + r.appInfo.uid + " for service "
                        + r.intent.getIntent() + ": process is bad";
                Slog.w(TAG, msg);
                bringDownServiceLocked(r);
                return msg;
            }
            if (isolated) {
                r.isolatedProc = app;
            }
        }

	//...

}
  • 分析realStartServiceLocked
private final void realStartServiceLocked(ServiceRecord r,
        ProcessRecord app, boolean execInFg) throws RemoteException {
    //...
    try {
        //...
		//分析
        //调用ActivityThread的ApplicationThread的方法
        //最终调用handleCreateService((CreateServiceData)msg.obj);
        app.thread.scheduleCreateService(r, r.serviceInfo,
                mAm.compatibilityInfoForPackageLocked(r.serviceInfo.applicationInfo),
                app.repProcState);
        r.postNotification();
        created = true;
    }

	//...

}
  • handleCreateService

private void handleCreateService(CreateServiceData data) {
    // If we are getting ready to gc after going to the background, well
    // we are back active so skip it.
    unscheduleGcIdler();

    LoadedApk packageInfo = getPackageInfoNoCheck(
            data.info.applicationInfo, data.compatInfo);
    Service service = null;
    try {
        java.lang.ClassLoader cl = packageInfo.getClassLoader();
        //通过类加载 + 反射创建service
        service = packageInfo.getAppFactory()
                .instantiateService(cl, data.info.name, data.intent);
    } catch (Exception e) {
        if (!mInstrumentation.onException(service, e)) {
            throw new RuntimeException(
                "Unable to instantiate service " + data.info.name
                + ": " + e.toString(), e);
        }
    }

    try {
        if (localLOGV) Slog.v(TAG, "Creating service " + data.info.name);

        ContextImpl context = ContextImpl.createAppContext(this, packageInfo);
        context.setOuterContext(service);

        Application app = packageInfo.makeApplication(false, mInstrumentation);
        //调用service的 attach  onCreate
        service.attach(context, this, data.info.name, data.token, app,
                ActivityManager.getService());
        service.onCreate();
        //单例
        mServices.put(data.token, service);
        try {
            ActivityManager.getService().serviceDoneExecuting(
                    data.token, SERVICE_DONE_EXECUTING_ANON, 0, 0);
        } catch (RemoteException e) {
            throw e.rethrowFromSystemServer();
        }
    } catch (Exception e) {
        if (!mInstrumentation.onException(service, e)) {
            throw new RuntimeException(
                "Unable to create service " + data.info.name
                + ": " + e.toString(), e);
        }
    }
}
  • 返回分析requestServiceBindingLocked方法
private final boolean requestServiceBindingLocked(ServiceRecord r, IntentBindRecord i,
        boolean execInFg, boolean rebind) throws TransactionTooLargeException {
    //...
    if ((!i.requested || rebind) && i.apps.size() > 0) {
        try {
            bumpServiceExecutingLocked(r, execInFg, "bind");
            r.app.forceProcessStateUpTo(ActivityManager.PROCESS_STATE_SERVICE);
            //绑定服务
            //最终调用
            r.app.thread.scheduleBindService(r, i.intent.getIntent(), rebind,
                    r.app.repProcState);
            if (!rebind) {
                i.requested = true;
            }
            i.hasBound = true;
            i.doRebind = false;
        }
        //...
    }
    return true;
}
  • ActivityThread类的handleBindService方法
private void handleBindService(BindServiceData data) {
    Service s = mServices.get(data.token);
    if (DEBUG_SERVICE)
        Slog.v(TAG, "handleBindService s=" + s + " rebind=" + data.rebind);
    if (s != null) {
        try {
            data.intent.setExtrasClassLoader(s.getClassLoader());
            data.intent.prepareToEnterProcess();
            try {
                if (!data.rebind) {
                    //接口回调   自定义服务中的onBind方法
                    IBinder binder = s.onBind(data.intent);
                    //分析AMS的publishService
                    ActivityManager.getService().publishService(
                            data.token, data.intent, binder);
                } else {
                    s.onRebind(data.intent);
                    ActivityManager.getService().serviceDoneExecuting(
                            data.token, SERVICE_DONE_EXECUTING_ANON, 0, 0);
                }
                ensureJitEnabled();
            } catch (RemoteException ex) {
                throw ex.rethrowFromSystemServer();
            }
        } catch (Exception e) {
            if (!mInstrumentation.onException(s, e)) {
                throw new RuntimeException(
                        "Unable to bind to service " + s
                        + " with " + data.intent + ": " + e.toString(), e);
            }
        }
    }
}
  • AMS的publishService
public void publishService(IBinder token, Intent intent, IBinder service) {
    // Refuse possible leaked file descriptors
    if (intent != null && intent.hasFileDescriptors() == true) {
        throw new IllegalArgumentException("File descriptors passed in Intent");
    }

    synchronized(this) {
        if (!(token instanceof ServiceRecord)) {
            throw new IllegalArgumentException("Invalid service token");
        }
        //分析publishServiceLocked
        mServices.publishServiceLocked((ServiceRecord)token, intent, service);
    }
}
  • 分析publishServiceLocked
void publishServiceLocked(ServiceRecord r, Intent intent, IBinder service) {
    final long origId = Binder.clearCallingIdentity();
    try {
        if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "PUBLISHING " + r
                + " " + intent + ": " + service);
        if (r != null) {
            Intent.FilterComparison filter
                    = new Intent.FilterComparison(intent);
            IntentBindRecord b = r.bindings.get(filter);
            if (b != null && !b.received) {
                b.binder = service;
                b.requested = true;
                b.received = true;
                for (int conni=r.connections.size()-1; conni>=0; conni--) {
                    ArrayList<ConnectionRecord> clist = r.connections.valueAt(conni);
                    for (int i=0; i<clist.size(); i++) {
                        ConnectionRecord c = clist.get(i);
                        if (!filter.equals(c.binding.intent.intent)) {
                            if (DEBUG_SERVICE) Slog.v(
                                    TAG_SERVICE, "Not publishing to: " + c);
                            if (DEBUG_SERVICE) Slog.v(
                                    TAG_SERVICE, "Bound intent: " + c.binding.intent.intent);
                            if (DEBUG_SERVICE) Slog.v(
                                    TAG_SERVICE, "Published intent: " + intent);
                            continue;
                        }
                        if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Publishing to: " + c);
                        try {
                            //最终调用  客户端的onServiceConnected
                            c.conn.connected(r.name, service, false);
                        } catch (Exception e) {
                            Slog.w(TAG, "Failure sending service " + r.name +
                                  " to connection " + c.conn.asBinder() +
                                  " (in " + c.binding.client.processName + ")", e);
                        }
                    }
                }
            }

            serviceDoneExecutingLocked(r, mDestroyingServices.contains(r), false);
        }
    } finally {
        Binder.restoreCallingIdentity(origId);
    }
}

3.分析ServiceConnection的onServiceConnected调用

  • 需要倒推
  • c.conn = IServiceConnection conn,找到IServiceConnection的实现类即可
//回到bindService开始分析--->ContextImpl类的bindServiceCommon
private boolean bindServiceCommon(Intent service, ServiceConnection conn, int flags, Handler
        handler, UserHandle user) {
    //...
    IServiceConnection sd;
    if (conn == null) {
        throw new IllegalArgumentException("connection is null");
    }
    if (mPackageInfo != null) {
        sd = mPackageInfo.getServiceDispatcher(conn, getOuterContext(), handler, flags);
    }
	//...
}

//分析LoadedApk类的getServiceDispatcher方法
public final IServiceConnection getServiceDispatcher(ServiceConnection c,
        Context context, Handler handler, int flags) {
    synchronized (mServices) {
        LoadedApk.ServiceDispatcher sd = null;
        ArrayMap<ServiceConnection, LoadedApk.ServiceDispatcher> map = mServices.get(context);
        if (map != null) {
            if (DEBUG) Slog.d(TAG, "Returning existing dispatcher " + sd + " for conn " + c);
            sd = map.get(c);
        }
        if (sd == null) {
            //分析ServiceDispatcher类,传入了ServiceConnection参数
            sd = new ServiceDispatcher(c, context, handler, flags);
            if (DEBUG) Slog.d(TAG, "Creating new dispatcher " + sd + " for conn " + c);
            if (map == null) {
                map = new ArrayMap<>();
                mServices.put(context, map);
            }
            map.put(c, sd);
        } else {
            sd.validate(context, handler);
        }
        //通过getIServiceConnection可以得知IServiceConnection的实现类是ServiceDispatcher.InnerConnection
        return sd.getIServiceConnection();
    }
}

//ServiceDispatcher类
static final class ServiceDispatcher {
    private final ServiceDispatcher.InnerConnection mIServiceConnection;
    private final ServiceConnection mConnection;
    //...

    private static class InnerConnection extends IServiceConnection.Stub {
        final WeakReference<LoadedApk.ServiceDispatcher> mDispatcher;

        InnerConnection(LoadedApk.ServiceDispatcher sd) {
            mDispatcher = new WeakReference<LoadedApk.ServiceDispatcher>(sd);
        }
		//即IServiceConnection的实现类是InnerConnection
        //最终触发的是connected
        public void connected(ComponentName name, IBinder service, boolean dead)
                throws RemoteException {
            LoadedApk.ServiceDispatcher sd = mDispatcher.get();
            if (sd != null) {
                //分析
                sd.connected(name, service, dead);
            }
        }
    }

    //...
    ServiceDispatcher(ServiceConnection conn,
            Context context, Handler activityThread, int flags) {
        mIServiceConnection = new InnerConnection(this);
        mConnection = conn;
        mContext = context;
        mActivityThread = activityThread;
        mLocation = new ServiceConnectionLeaked(null);
        mLocation.fillInStackTrace();
        mFlags = flags;
    }

    //...

    public void connected(ComponentName name, IBinder service, boolean dead) {
        if (mActivityThread != null) {
            mActivityThread.post(new RunConnection(name, service, 0, dead));
        } else {
            doConnected(name, service, dead);
        }
    }

    //...
    public void doConnected(ComponentName name, IBinder service, boolean dead) {
        ServiceDispatcher.ConnectionInfo old;
        ServiceDispatcher.ConnectionInfo info;

        synchronized (this) {
            if (mForgotten) {
                // We unbound before receiving the connection; ignore
                // any connection received.
                return;
            }
            old = mActiveConnections.get(name);
            if (old != null && old.binder == service) {
                // Huh, already have this one.  Oh well!
                return;
            }

            if (service != null) {
                // A new service is being connected... set it all up.
                info = new ConnectionInfo();
                info.binder = service;
                info.deathMonitor = new DeathMonitor(name, service);
                try {
                    service.linkToDeath(info.deathMonitor, 0);
                    mActiveConnections.put(name, info);
                } catch (RemoteException e) {
                    // This service was dead before we got it...  just
                    // don't do anything with it.
                    mActiveConnections.remove(name);
                    return;
                }

            } else {
                // The named service is being disconnected... clean up.
                mActiveConnections.remove(name);
            }

            if (old != null) {
                old.binder.unlinkToDeath(old.deathMonitor, 0);
            }
        }

        // If there was an old service, it is now disconnected.
        if (old != null) {
            //最终的调用
            mConnection.onServiceDisconnected(name);
        }
        if (dead) {
            mConnection.onBindingDied(name);
        }
        // If there is a new viable service, it is now connected.
        if (service != null) {
            //最终的调用
            mConnection.onServiceConnected(name, service);
        } else {
            // The binding machinery worked, but the remote returned null from onBind().
            mConnection.onNullBinding(name);
        }
    }

   //...
}
0

评论区
